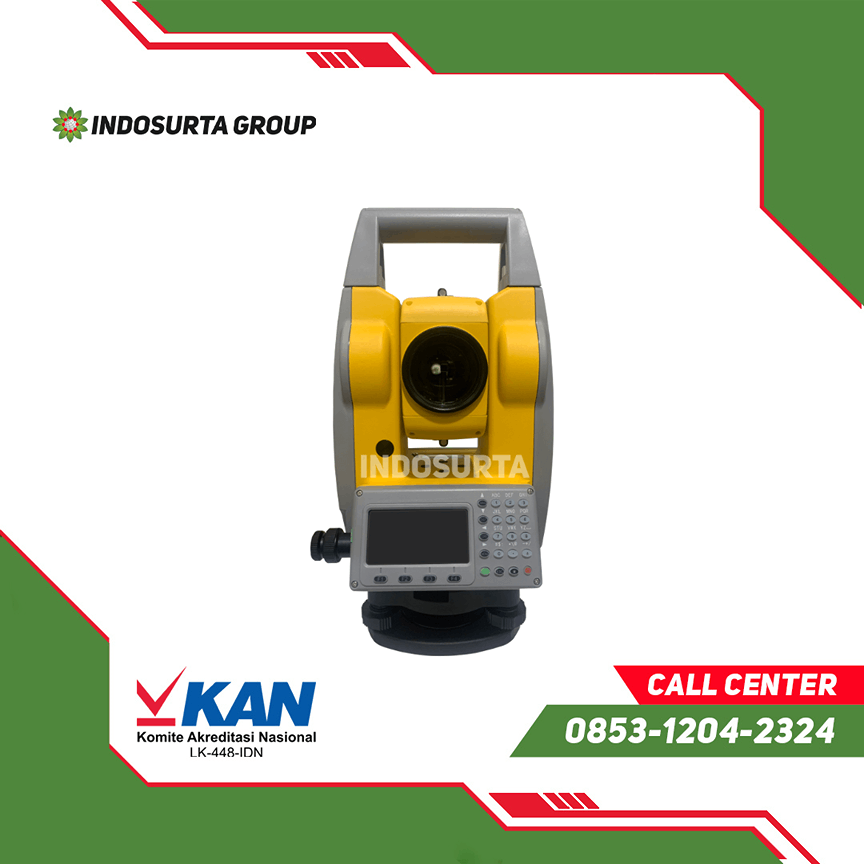

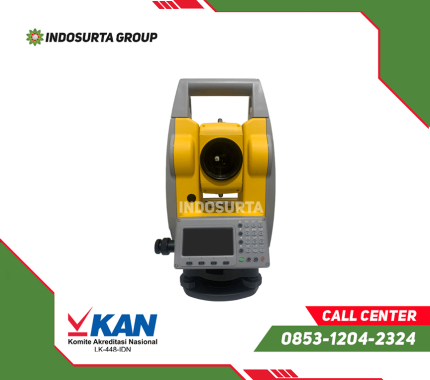

Total Station Hi Target ZTS-320R

Deskripsi ] Total Station Hi Target ZTS-320R

Deskripsi

Total Station Hi Target ZTS-320R memiliki akurasi 2 detik yang dapat mengukur dengan baik dan juga akurat. Pengukuran jarak 600 meter tanpa menggunakan prisma (reflectorless) hanya dalam 1 klik, dan jarak pengukuran 6 km dengan bantuan prisma.

Kemudian terdapat memori penyimpanan yang mampu menyimpan hingga 20.000 point serta penyimpanan eksternal maksimum 32GB. Di lengkapi dengan baterai sebesar 3000 mAh yang kuat hingga 16 jam serta sudah bersertifikasi IP65 yang tahan air dan juga debu.

>Untuk lihat produk lainnya silakan cek web Indosurta Group ( indosurta.co.id )<

Spesifikasi Total Station Hi Target ZTS – 320R

• Angle Measurement
  • Measurement Method : Absolute Encoding
  • Minimum Readout : 1″/ 5″/ 10″ (0.3mgon/1.5mgon/3mgon) optional
  • Accuracy : 2

• Distance Measurement (ZTS320 with Reflector)
  • Single Prism: 3000m (24,606 ft.) under good condition
  • Three Prisms: 6000m (19,685 ft.) under good condition
  • Reflective sheet: 800m (2,624 ft.)
  • Accuracy : 2 mm + 2ppm
  • Measuring Time (Fine/Quick/Tracking): 1.5/1s/0.5s

• Distance Measurement (ZTS320R with Reflectorless)
  • Reflectorless Range: 350m (1,148 ft.), 600m (1,969 ft) optional
  • Single Prism: >7500m (24,606 ft.)
  • Accuracy : 3mm + 2ppm
  • Measuring Time: 1.5s

• Telescope
  • Magnification : 30X
  • Field of View : 1°30′ (2.7m at 100m)
  • Minimum Focusing Distance : 1.5m
  • Reticle : Illuminated

• Compensator
  • System : Single – axis liquid tilt sensor/ Dual-axis (optional)
  • Working Range : ±3′
  • Setting Accuracy : 1″

• Communication
  • Bluetooth
  • Interface : Standard RS232, SD card, USB, mini-B
  • Internal Data Memory : Approx. 20,000 Points
  • Data Format : ASCII

• Operation
  • Operation system : Real-time Operating System
  • Display : High Resolution backlight black and white display with;
  • Contrast adjustment/ Graphics: 192 x 96 px
  • Character: 6 lines x 25 characters
  • Keyboard: 2 sides Alphanumeric backlit crystal keyboard

• Laser Plummet
  • Type : Laser point, 4 brightness levels adjustment / Optical Plummet (optional)
  • Centering Accuracy :  1 mm at 1.5m instrument height

• Power Supply
  • Battery Type : Rechargeable Li-ion battery
  • Voltage / Capacity : ZBA-400 : 7.4V (DC) / 3000mAh
  • Operating Time With ZBA-400 : Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours (typical)
  • Measuring Times : Approx. 12000 times

• Physical
  • Weight (Include battery & Tribrach) : Approx. 5.5kg (12.1lb.)
  • Size: 300mm x 150mm x 150mm (HxWxD)

• Environmental
  • Operating Temperature: -20°C ~+ 50°C (-4 °F to +122°F)
  • Storage Temperature: -40°C ~+ 70°C (-40°F to +158°F)
  • Dust&Water Proof (IEC60529 Standard)/ Humidity: IP65, 95%, non-condensing

Kelengkapan

• 1 Unit Total Station HI TARGET ZTS 320R
• 1x Battery
• 1x Charger Battery
• 1x Prisma Single
• 1x Prisma Polygon
• 1x Pole stik
• 2x Alumunium Tripod

Layanan purna jual

• Garansi servis dan kalibrasi 1 tahun
• Gratis training alat
